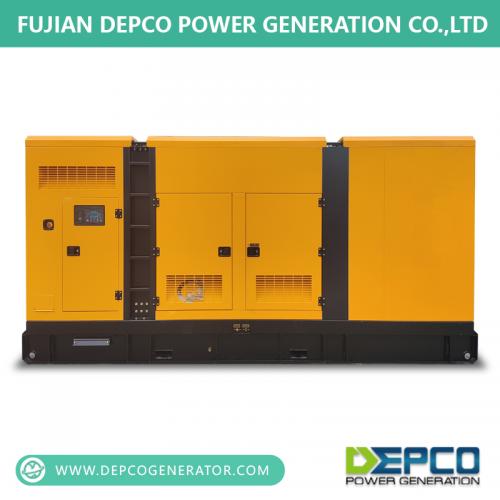

Hyundai Ranges 176 kVA Diesel Generator
Brand:
Depco PowerItem NO.:
DPK-DD-176Frequency(Hz):
50Phase:
3Voltage(V):
380Engine:
HyundaiEngine Model:
P086TI-1PRP (kW):
128PRP (kVA):
160ESP (kW):
141ESP (kVA):
176Arrangement:
6LGovernor:
ElectricalSilent 141kw/176kva Hyundai Diesel Generator P086TI-1
Product Introduce:
Hyundai diesel generator is one of the world top famous engines and widely acceptable all over the world.
We have all series from 170kva to 1650kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
Advantage of our Hyundai diesel generator :
Our range of EXW type Super Silent Diesel generators are designed for sale in the Euro & Worldwide. These Super Silent Generators feature a soundproof canopy that’s over 100mm thick. They are perfect for inner-city use and entertainment sectors in key development areas in the Europe,American，and worldwide.
These generators are some of the best and quietest on the market today and are practically unbeaten on price. Our range of Super Silent generators use top-quality UK Steel in their base and can be made from specifications up to 500kva, making this one of the most powerful quiet generators on the market.
Product Parameters:
| Details Generator Set | GenSet Model | DPK-DD-176 | Type | Silent |
| Frequency (Hz) | 50 | Speed (rpm) | 1500 | |
| Phase | 3 | Rated voltage | 380V | |
| Prime output | 128kW/160kVA | Standby output | 141kW/176kVA | |
| Cylinder | 6 | Cooling system | Water | |
| N.W (kg) | 1980 | Size (L*W*H)mm | 2900*1100*1800 | |
| Fuel Con.(L/H) | 35.4 | Fuel capacity tank | 330 L | |
| Running time (H) | 8 | Sound decibel | 70DB-75DB | |
| Details Engine | Brand | Hyundai | ||
| Model | P086TI-1 | Fuel | Diesel | |
| Cylinder | 6 | Cooling system | Water-cooling | |
| Cylider arrangemant | IN-LINE | Bore and Stroke(mm) | 111 X 139 | |
| Cyle | 4 Staoke | Compression ratio | 16.4:1 | |
| Governor | Electrical | Displacement(L) | 8.1 | |
| Details Alternator | Brand | Depco, Leroy Somer, Stamford, Mecc Alte | ||
| Model | DPC274F/TAL-A44-K/LSA 44.3 L12/UCI274F/ECP34 2L4C | |||
| No.of bearings | 1 | Insulation class | H | |
| Wires | 12 | Ingress protection | IP23 | |
| Excitation system | Shunt | Volrage | ±1% | |
